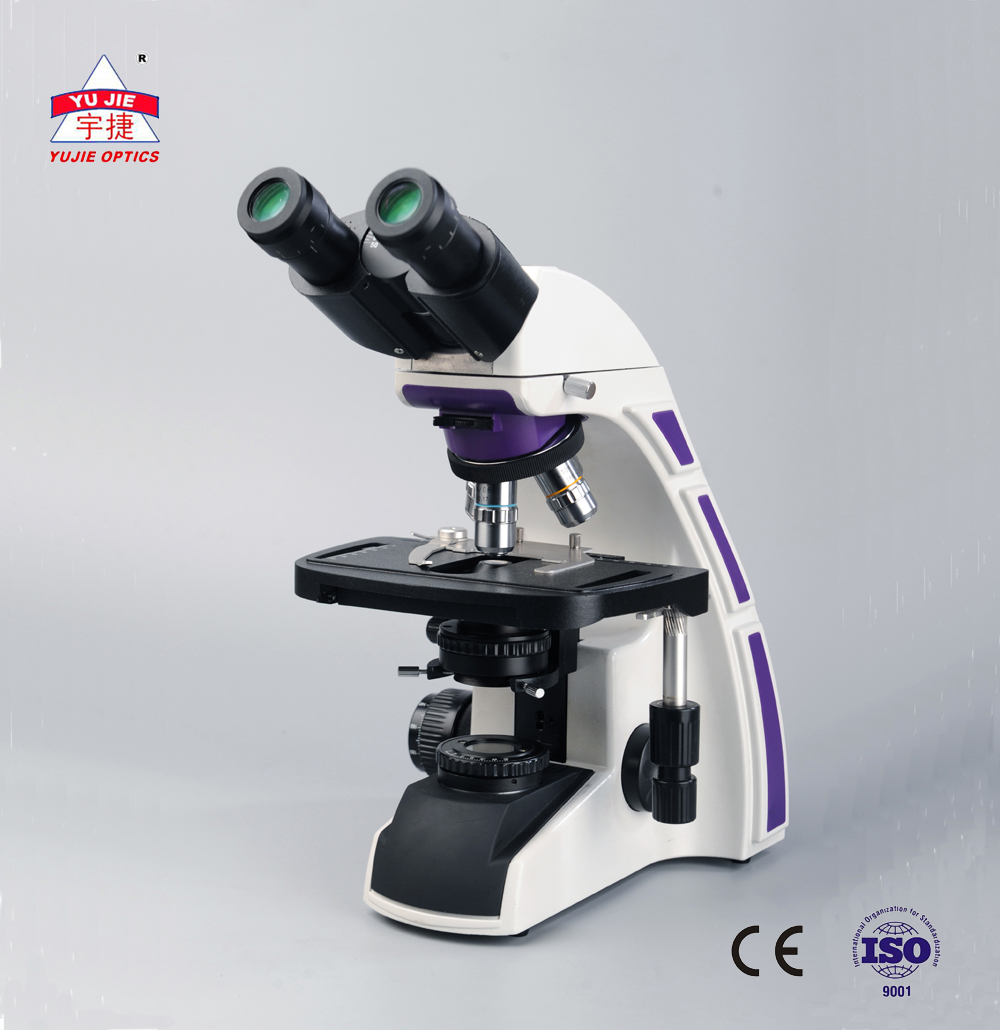

YJ-2016B
2020-01-14 15:56:39 Click: 9303
Production Description
 |  |
 |
| Optical System | Finity Optical System |
| Eyepiece | PL10X/23mm High Eyepiont Eyepiece, Diopter Adjustment ±5, TubeΦ30mm |
| Objective | 45mm DIN Achromatic Objective：4X,10X,40X(S),100X(S,Oil) |
| Viewing Head | Articulated Free Binocular Head, 30°inclined, Interpupillary Distance 50-75mm |
| Nosepiece | Backward Quintuple or Quadruple Objective Nosepiece |
| Stage | 220X148mm X-axis Low Hand Position Double Mechanical Stage(steel wire transmission)，76X50mm,Presion 0.1mm，Damped Double Slide Clamp |
| Condenser | Abbe Condenser Set |
| Focusing System | Coaxial Coarse and Fine Focus Knobs, Precision 0.002mm |
| Illumination | 3W LED Lamp with Kohler Illumination System |
| Optional | 1.Insert Phase Contrast Apparatus 2.Dry Darkfield Condenser, Oil-darkfiled Condenser 3.Polarizing Device 4.Plan Objective Set、Infinity Plan Achromatic Objective Set 5.Swing Abbe Condenser 6.5W LED燈 |
| Net Weight | 7KG |
Package
1set/foam+carton
Carton Dimension：36X31X47cm
